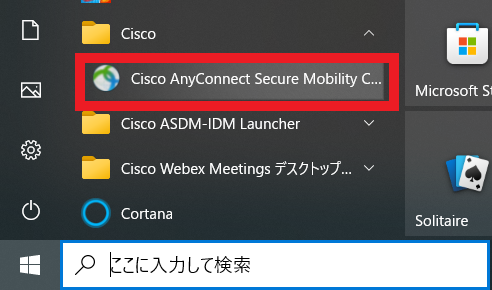

Open the [Cisco AnyConnect Secure Mobility Client].
For example, Click [Windows Mark]→[Cisco]→[Cisco AnyConnect Secure Mobility Client]→[Cisco Anyconnect Secure Mobility Client].
Type kekvpn.kek.jp and click [Connect].

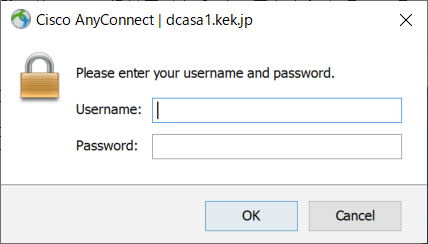

The window below will then open.

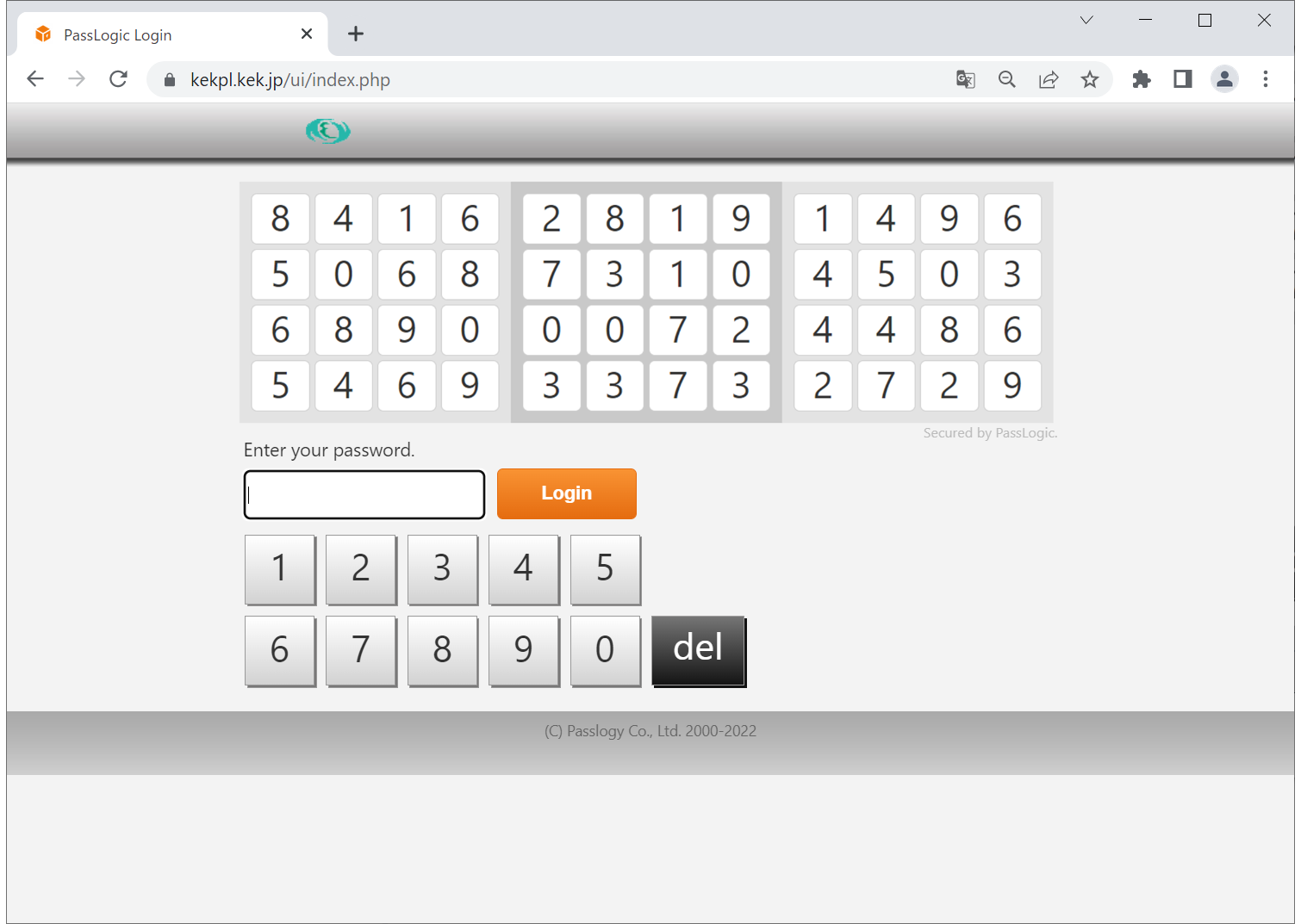

Start your browser, and access to the login page(
https://kekpl.kek.jp/ui/) of the authentication system.
(If you choose [en] in the pull-down for language selection, the website will be in English.)
Input your “UserID”, and click the [Next] button.
(You will know your UserID from the email with the subject “Your registration to KEK VPN new authentication (random number table method) has been completed.”.)
Input your current password, and click the [Login] button.
(The password consists of 「sequence of numbers created by “OTP Pattern” and Random Number Table」 and 「“Additional Phrases”」.)
Must see details of the initial-password, see (Example) below
What is “OTP Pattern”?
It is positions and order to choose displayed number in the Random Number Table.
You will create a one-time password by combining the “OTP Pattern” and a Random Number Table.
What is “Additional Phrases”?
It is fixed characters.
(Example)

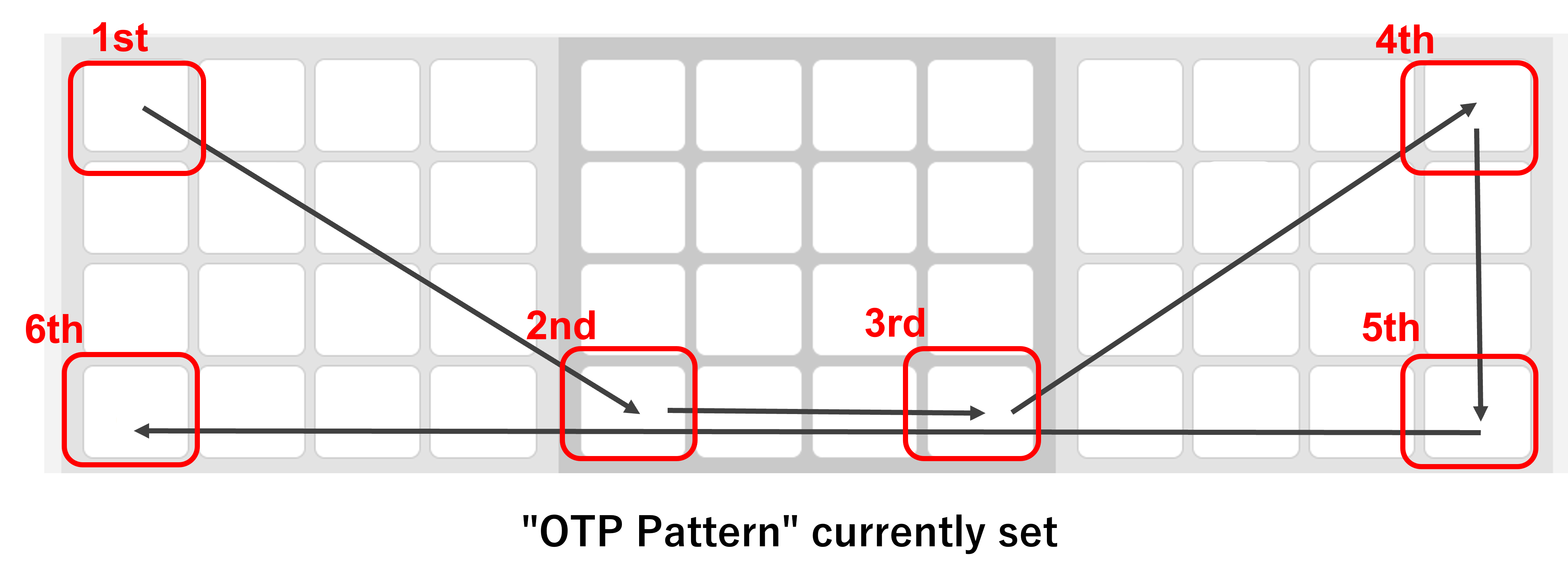

For example, your current “OTP Pattern” is shown below and your current “Additional Phrases” is “vpn06".

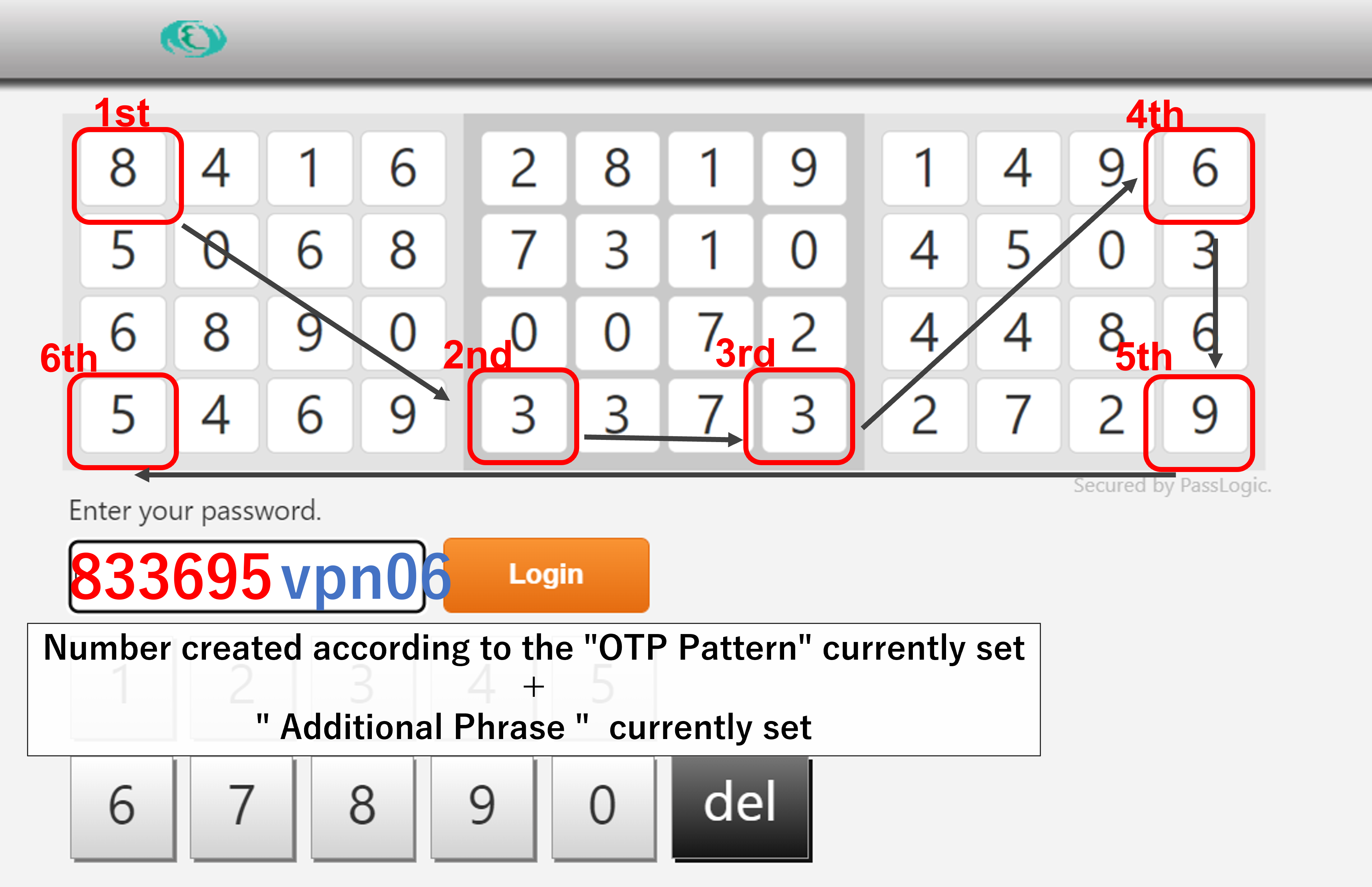

And if you got a matrix in your browser that looks like the image below, your password is “833695vpn06”. (“Additional Phrases” followed after “OTP Pattern”) ("833695" is for example, numbers picked from the matrix according to “OTP Pattern”.)
A matrix is effective for 3 minutes.
Reload the page, if 3 minutes or more passed after the matrix is displayed.

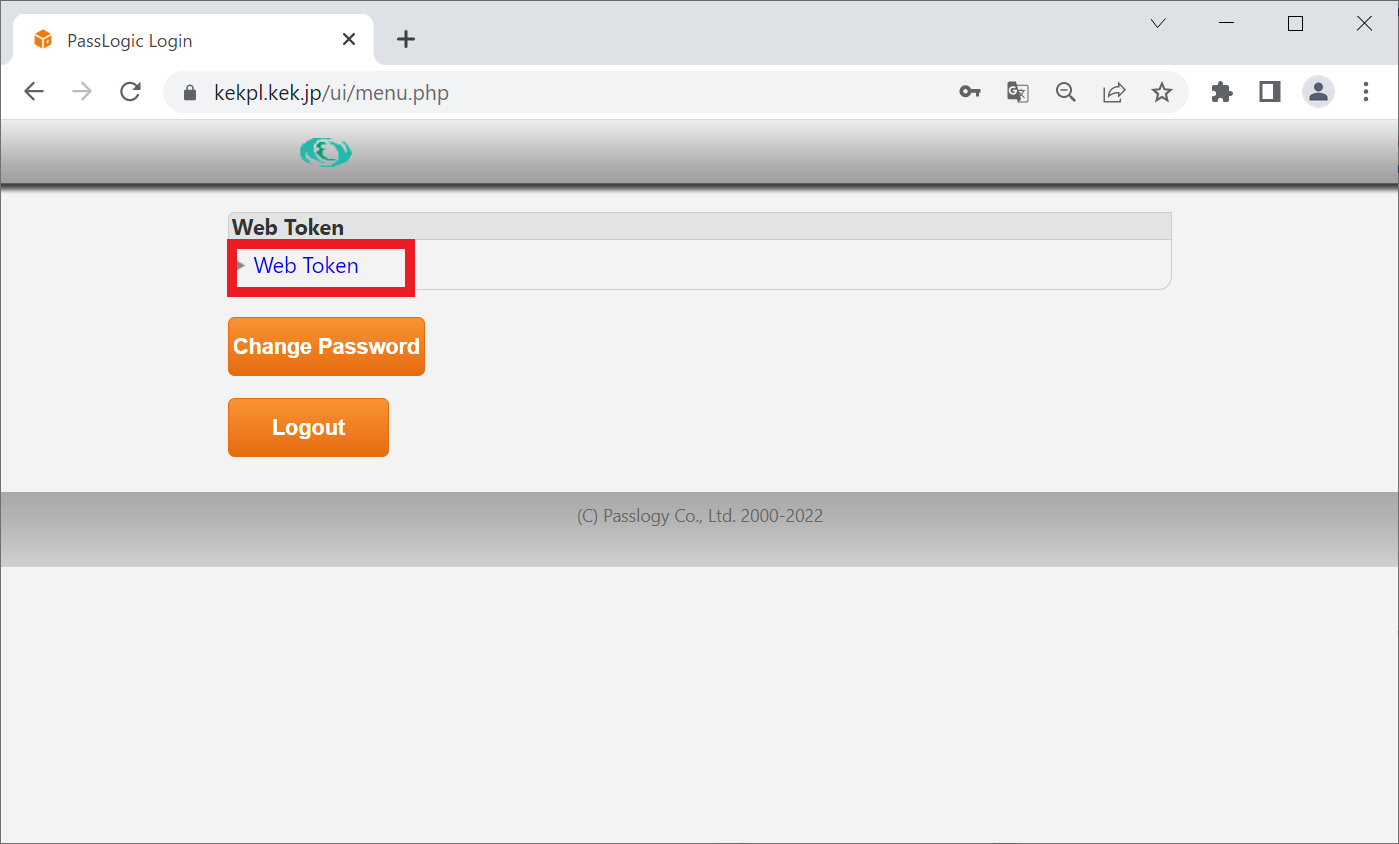

Click on [Web Token].

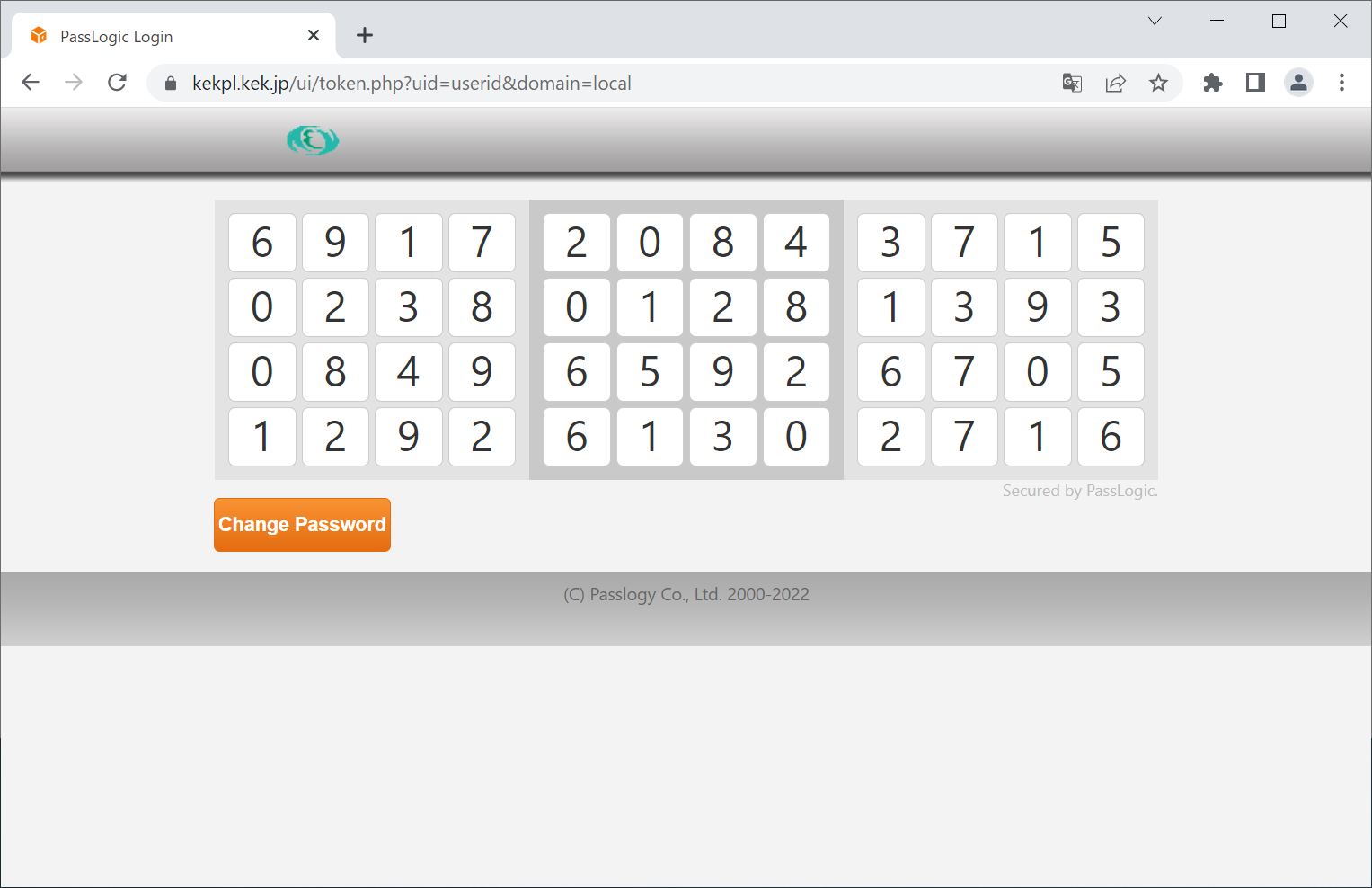

Your browser will display a Random Number Table.

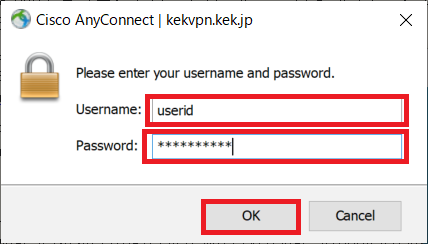

In the window of the VPN client software (opened in step 2), enter “UserID” in the Username field and the password in the Password field.
Then click [OK].
(The “OTP Pattern” and “Additional Phrases” used to create the password are the same as those used in step 5.)
(You will use the random number table from step 8 to create your password.)
Must see details of the initial-password, see (Example) below .
(Example)
For example, your current “OTP Pattern” is shown below and your current “Additional Phrases” is “vpn06".

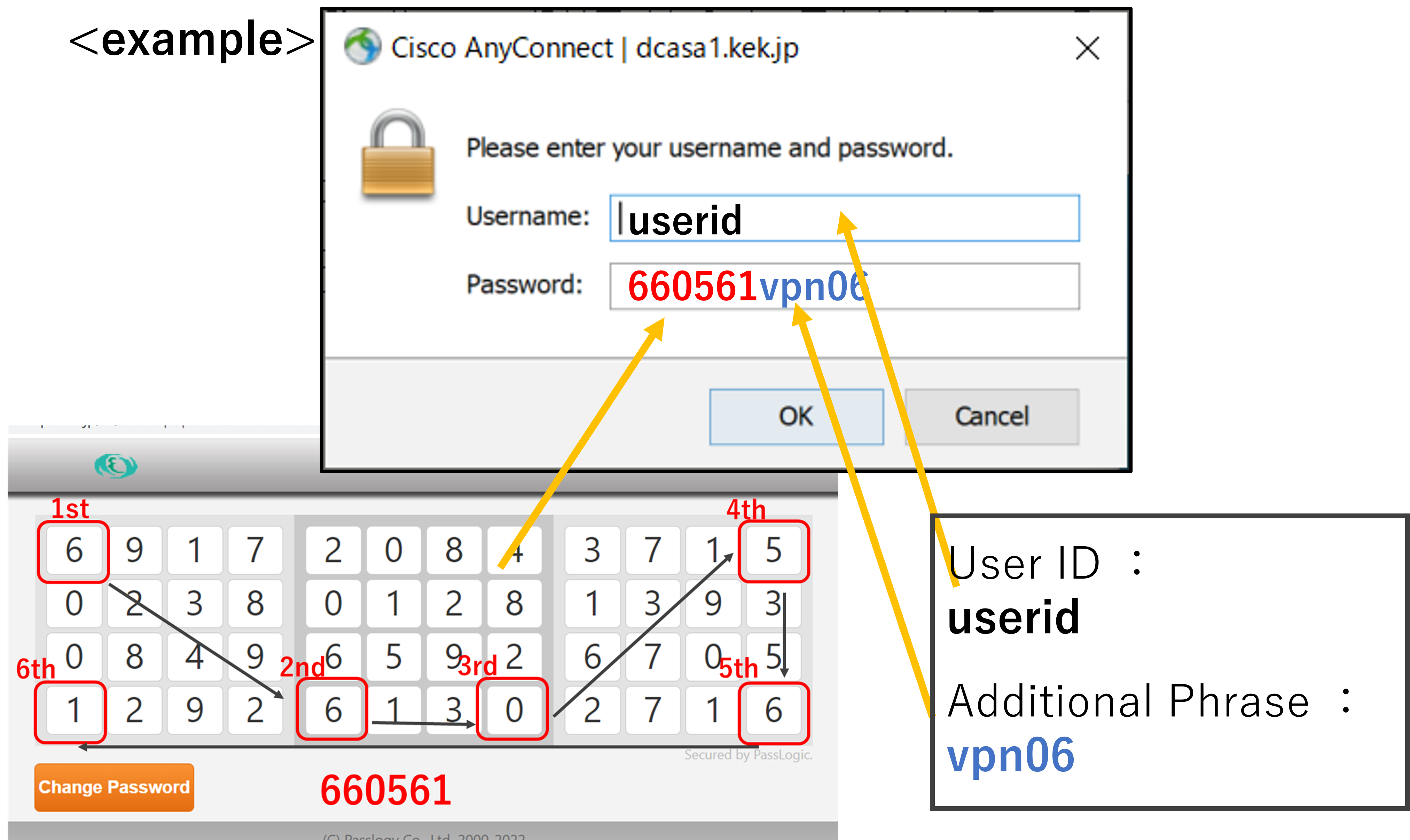

And if you got a matrix in your browser that looks like the image below, your password is “660561vpn06”. (“Additional Phrases” followed after “OTP Pattern”) ("660561" is for example, numbers picked from the matrix according to “OTP Pattern”.)
A matrix is effective for 3 minutes.
Reload the page, if 3 minutes or more passed after the matrix is displayed.
If the authentication is successful, the VPN connection will be initiated and an icon with a key mark will appear on the taskbar.
