macOS 10/11/12 How to Use KEK VPN (with a Random Number Table)

macOS 10/11/12 How to Use KEK VPN (with a Random Number Table) #

VPN Connection Method #

  1. Open the [Cisco AnyConnect Secure Mobility Client]. The AnyConnect client is typically located in a folder inside the Applications section called ‘Cisco’.

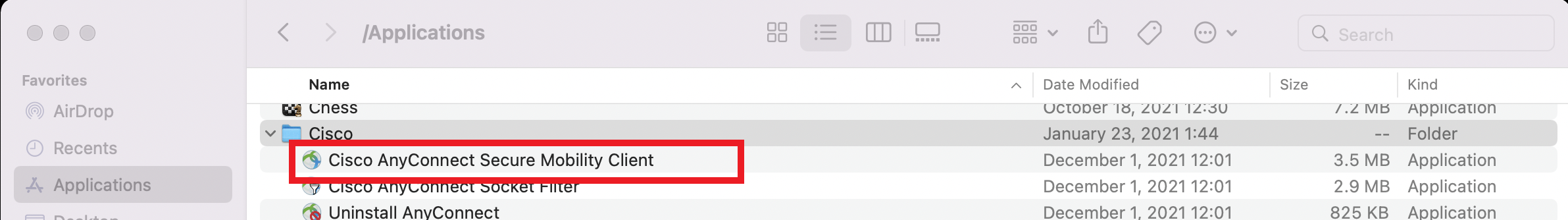

    usage001

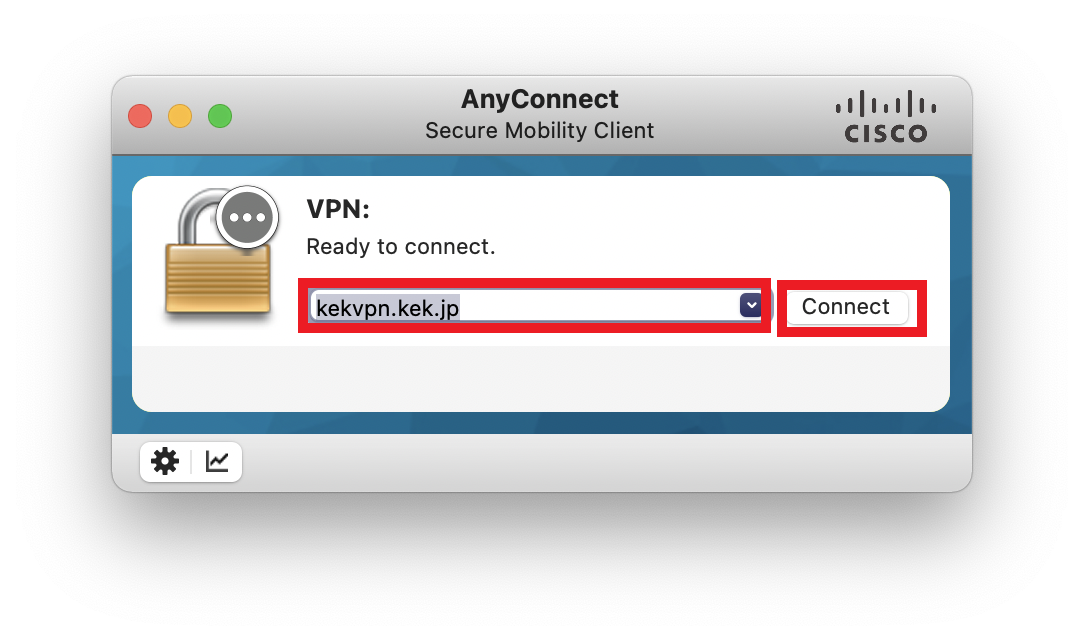

  2. Type kekvpn.kek.jp and click [Connect].

    usage002
    The window below will then open.

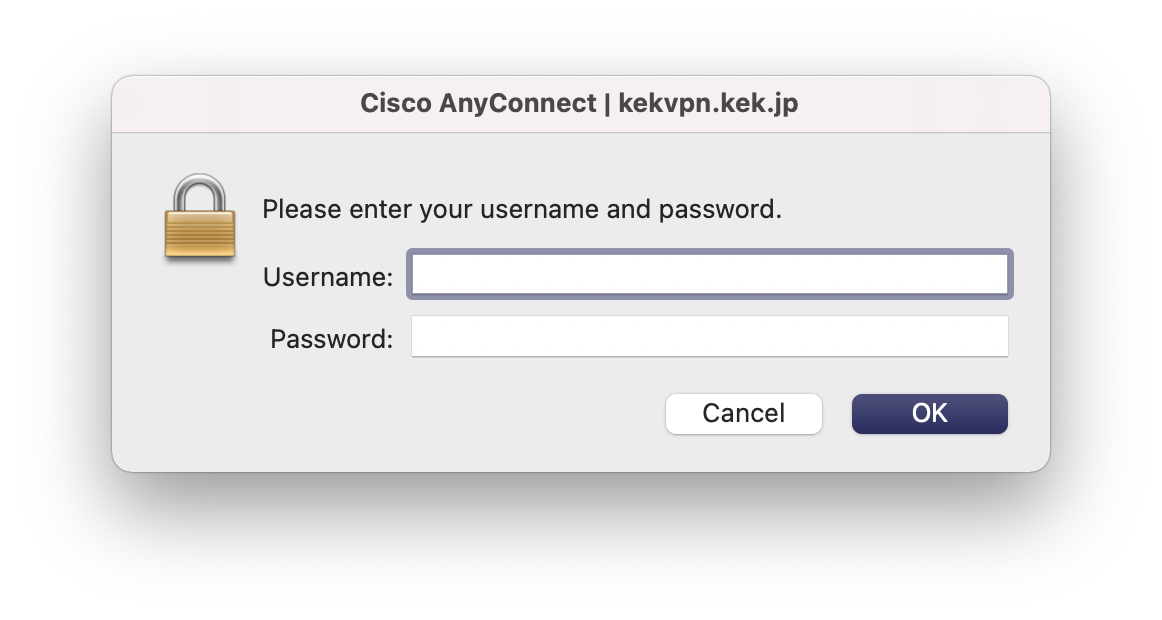

    usage003

  3. Start your browser, and access to the login page( https://kekpl.kek.jp/ui/) of the authentication system.
    (If you choose [en] in the pull-down for language selection, the website will be in English.)

  4. Input your “UserID”, and click the [Next] button.
    (You will know your UserID from the email with the subject “Your registration to KEK VPN new authentication (random number table method) has been completed.”.)

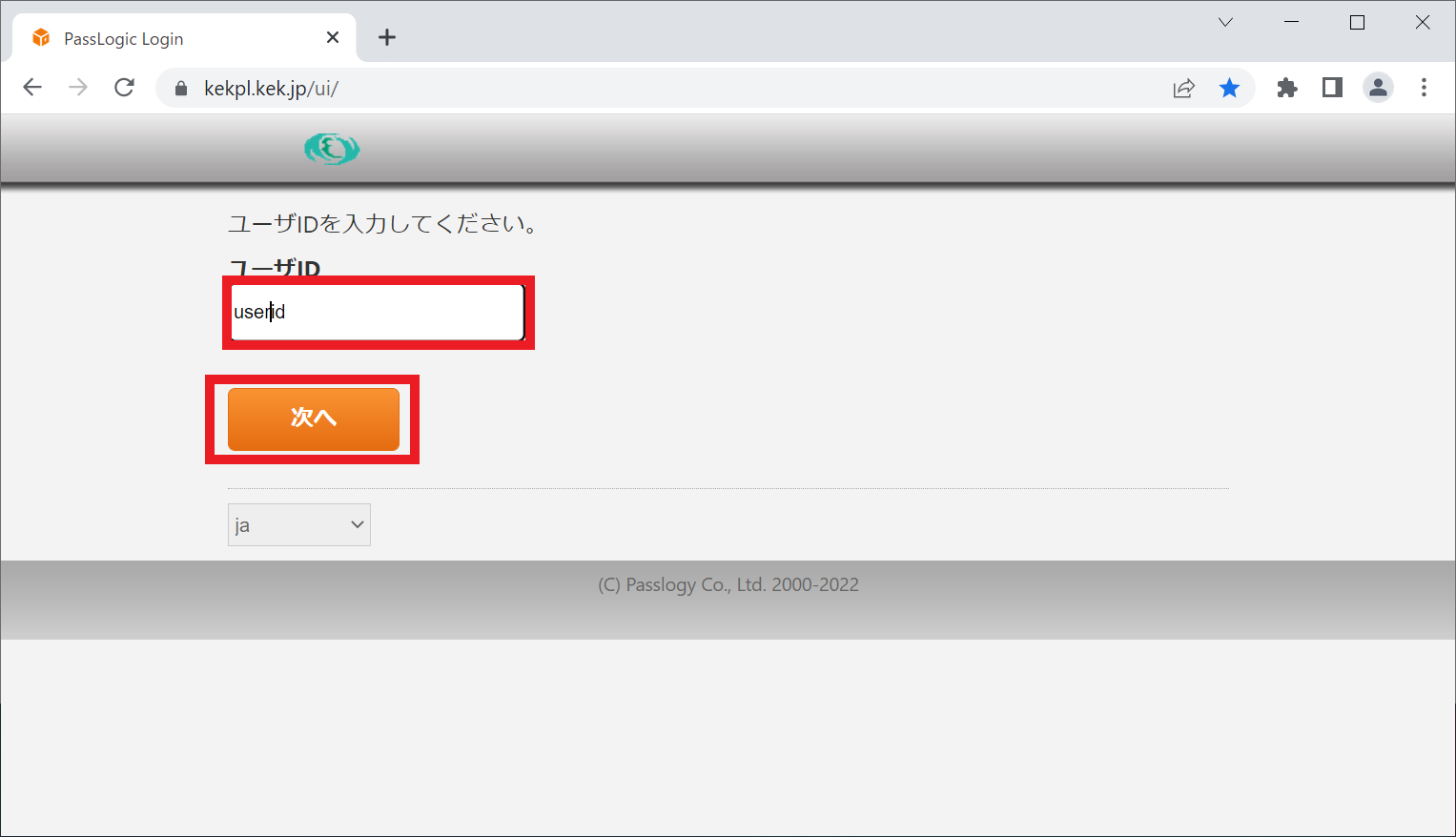

    usage004
  5. Input your current password, and click the [Login] button.
    (The password consists of 「sequence of numbers created by “OTP Pattern” and Random Number Table」 and 「“Additional Phrases”」.)

    Must see details of the initial-password, see (Example) below

    What is “OTP Pattern”?
    It is positions and order to choose displayed number in the Random Number Table.
    You will create a one-time password by combining the “OTP Pattern” and a Random Number Table.

    What is “Additional Phrases”?
    It is fixed characters.

    (Example)
    For example, your current “OTP Pattern” is shown below and your current “Additional Phrases” is “vpn06".

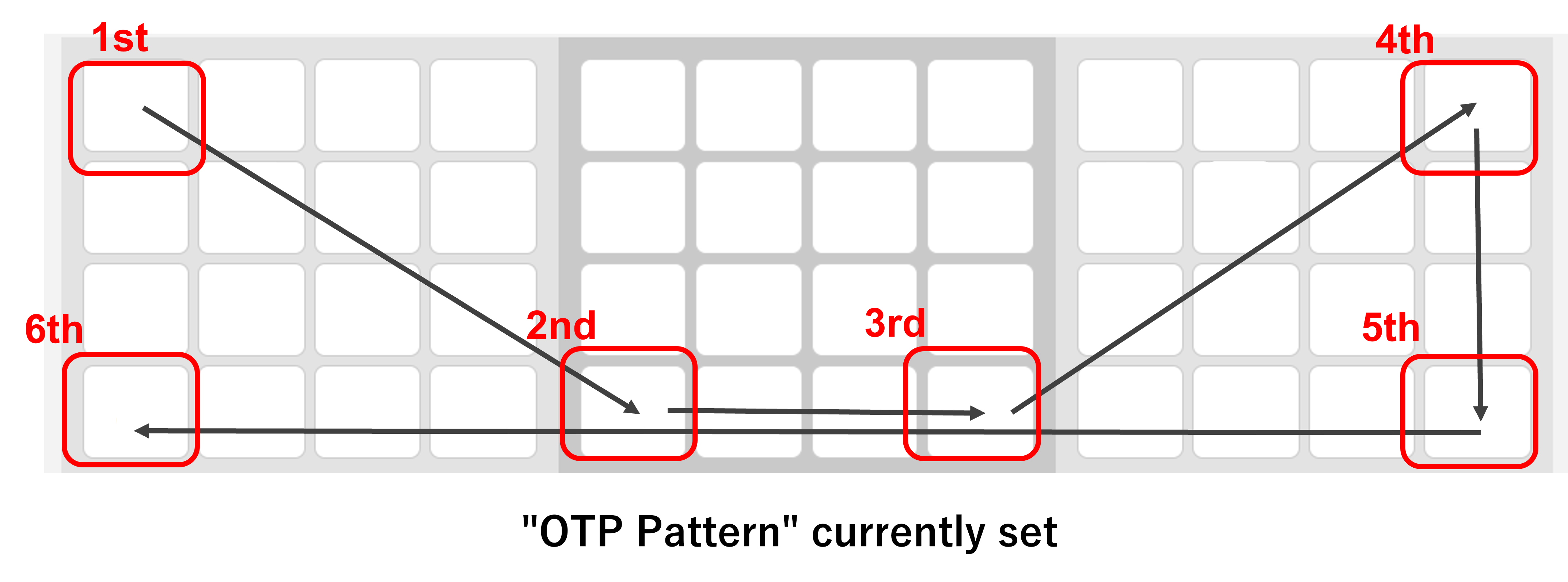

    usage006
    And if you got a matrix in your browser that looks like the image below, your password is “833695vpn06”.
    (“Additional Phrases” followed after “OTP Pattern”)
    ("833695" is for example, numbers picked from the matrix according to “OTP Pattern”.)

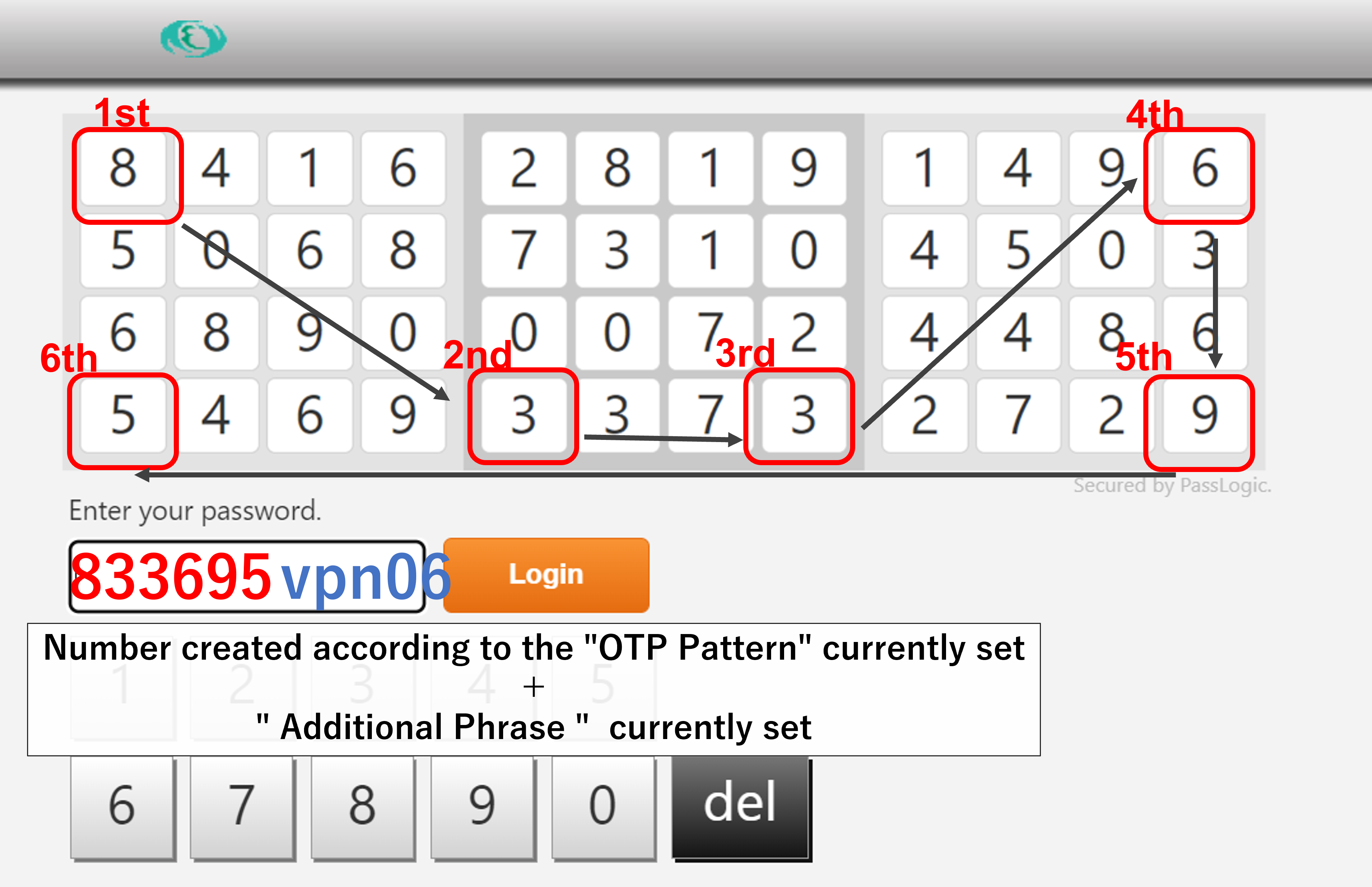

    usage007
    • A matrix is effective for 3 minutes.
    • Reload the page, if 3 minutes or more passed after the matrix is displayed.

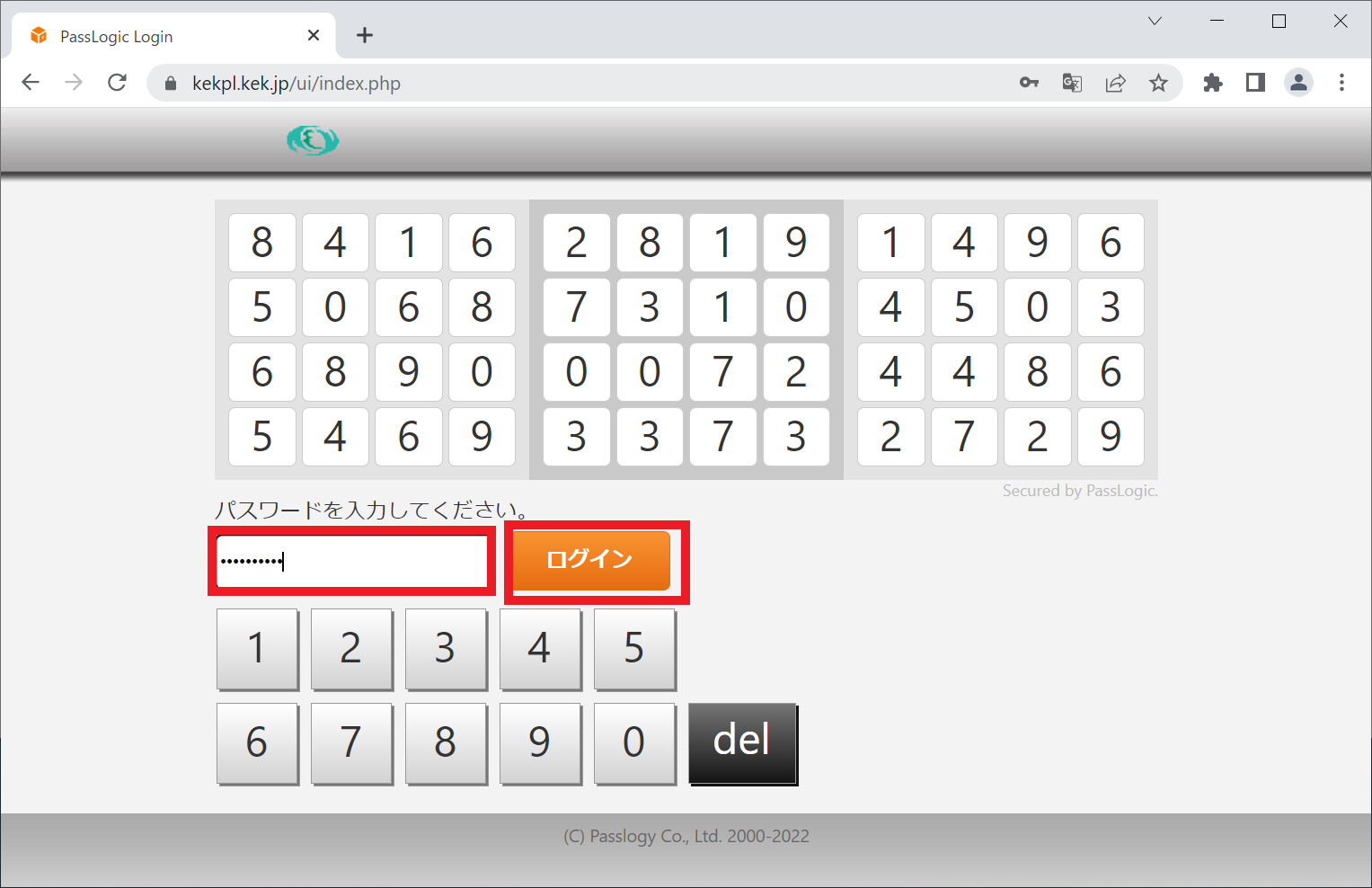

    usage005
  6. Click on [Web Token].

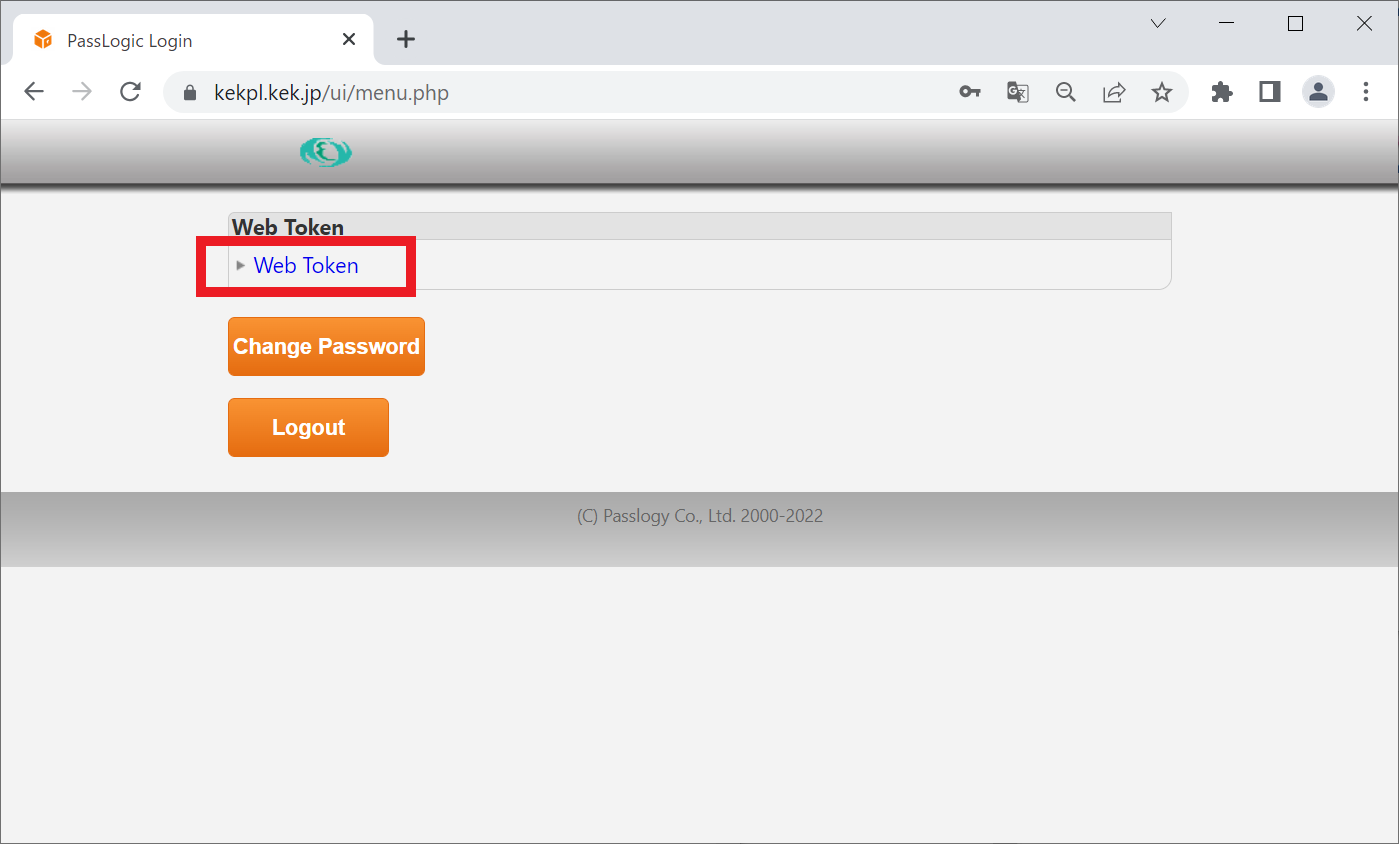

    usage008
    Your browser will display a Random Number Table.

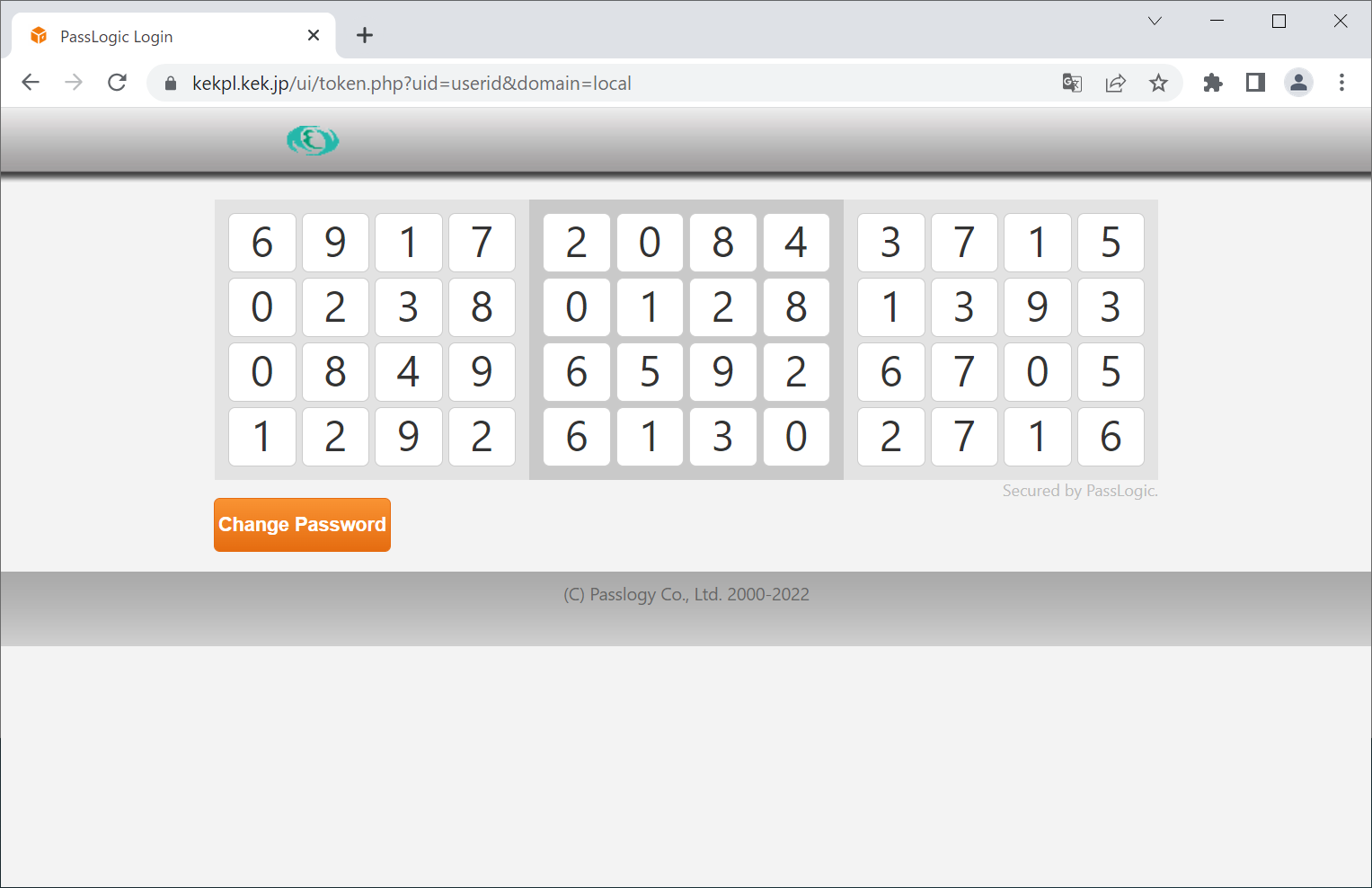

    usage009

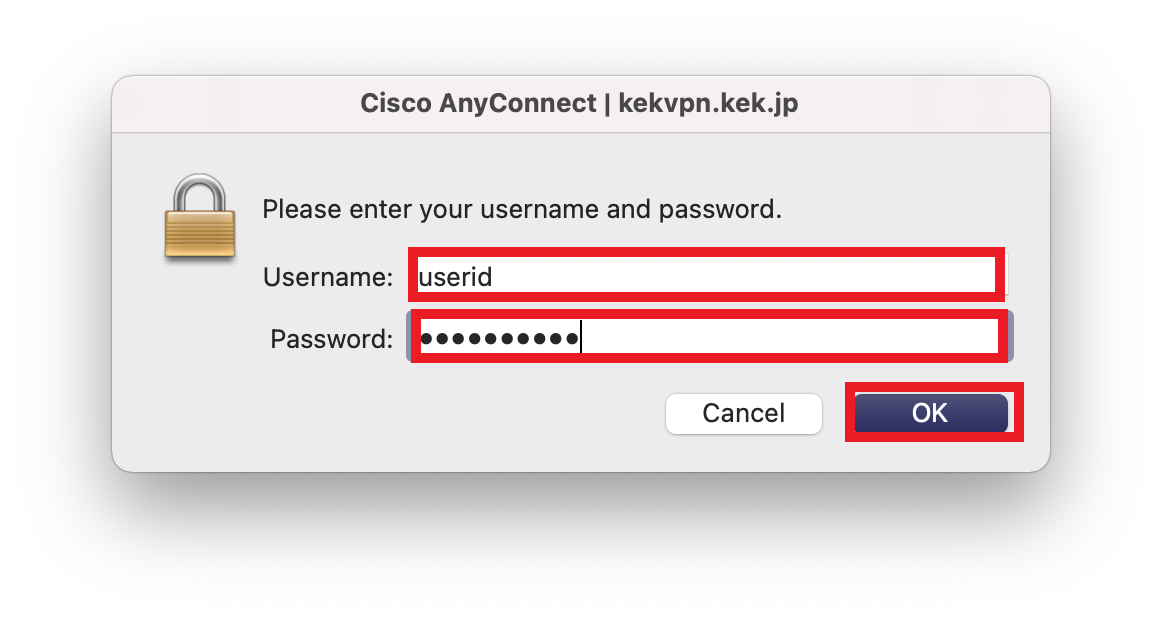

  7. In the window of the VPN client software (opened in step 2), enter “UserID” in the Username field and the password in the Password field.
    Then click [OK].
    (The “OTP Pattern” and “Additional Phrases” used to create the password are the same as those used in step 5.)
    (You will use the random number table from step 8 to create your password.)

    Must see details of the initial-password, see (Example) below .

    usage_010
    (Example)
    For example, your current “OTP Pattern” is shown below and your current “Additional Phrases” is “vpn06".
    usage006
    And if you got a matrix in your browser that looks like the image below, your password is “660561vpn06”.
    (“Additional Phrases” followed after “OTP Pattern”)
    ("660561" is for example, numbers picked from the matrix according to “OTP Pattern”.)
    regist011
    • A matrix is effective for 3 minutes.
    • Reload the page, if 3 minutes or more passed after the matrix is displayed.
  8. If the authentication is successful, the VPN connection will be initiated and an icon with a key mark will appear on the taskbar.

    usage012

VPN Disconnection Method #

  1. Click on the icon with the key symbol on the taskbar.
    usage301
  2. Click [Disconnect].
    usage302
